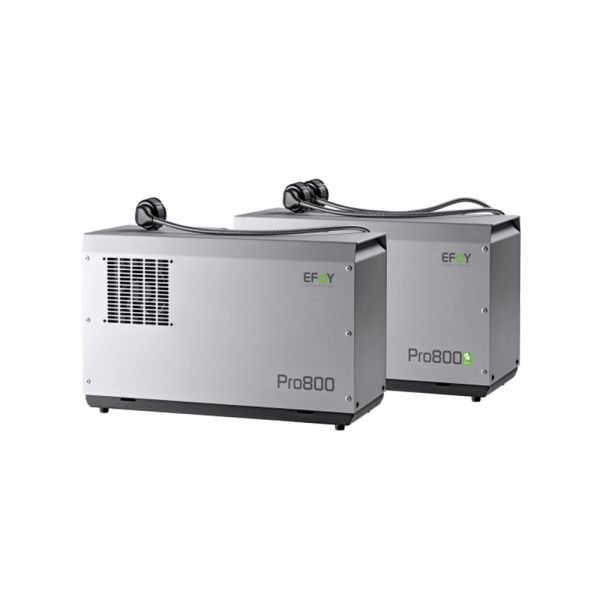

EFOY Pro 800 - Fuel Cell - EFOY-PRO800SET
EFOY Pro 800 - Fuel Cell - EFOY-PRO800SET
SKU
EFOY-PRO800SET
SKU
EFOY-PRO800SET
The EFOY Pro 800 delivers an output of 45 W and is also available as a Duo version with two fuel connectors for two EFOY fuel cartridges. Using the DuoCartSwitch, up to four fuel cartridges can be connected to one EFOY Pro 800 Duo for even more autonomy. Typical areas of application of the EFOY Pro 800 are, for example, measuring stations in the areas of environmental technology which have a continuously low energy consumption for a long duration.
EFOY Pro 800 - Fuel Cell - EFOY-PRO800SET
Fully automatic power generator
EFOY Pro fuel cells are intelligent power generators that can be used to continuously and fully automatically recharge batteries. The fuel cell is connected directly to the battery supplying the consumer and monitoring its charge status. Depending on requirements, the fuel cell switches on automatically, recharges the battery and then returns to standby mode – without any maintenance or user intervention required.
The EFOY Pro 800 delivers an output of 45 W and is also available as a Duo version with two fuel connectors for two EFOY fuel cartridges. Using the DuoCartSwitch, up to four fuel cartridges can be connected to one EFOY Pro 800 Duo for even more autonomy. Typical areas of application of the EFOY Pro 800 are, for example, measuring stations in the areas of environmental technology which have a continuously low energy consumption for a long duration.
| EFOY Pro | 800 / 800 Duo | |
|---|---|---|
| Power output | 45 W | |
| Power output after (operating hours)1 | 25 W (4,500 h) | |
| Nominal voltage | 12 V DC / 24 V DC | |
| Charging current | 3.75 A / 1.88 A | |
| Charging current after (operating hours) | 2.08 A / 1.04 A (4,500 h) | |
Recommended battery capacity2 | 12 V: 40 to 160 Ah 24 V: 10 to 100 Ah | |
Weight | 8.0 kg (17.6 lbs) / 8.3 kg (18.3 lbs) | |
Warranty3 | 24 months / 4,500 operating hours | |
Connectable cartridges | M5, M10, MT60 / M28 only with M28 adapter | |
Number of connectable cartridges (with DCS1) | 1 (2) / 2 (4) | |
Length fuel cartridge connector | 70 cm / 27.6 in | |
Switching threshold for automatic battery charging at 12 V / 24 V / 48 V4 | On: 12.3 V / 24.6 V / -- Off: 14.2 V / 28.4 V / -- | |
Required start-up voltage at 12 V / 24 V / 48 V | 9 V / 18.5 V / -- | |
Maximum battery voltage at 12 / 24 V / 48 V | 16 V / 32 V / -- | |
Noise level (at 1m / 7m distance) | 42 dB(A) / 25 dB(A) | |
Nominal Consumption5 | 0.9 l/kWh | |
Quiescent current draw at 12 V | 20 mA | |
Operating temperature6 | -20 °C to +50 °C / -4 °F to +122 °F | |
Start-up temperature | +3 °C to +50 °C / +37.4 °F to +122 °F | |
Storing temperature | +1 °C to +50 °C / +34 °F to +122 °F | |
Altitude7 | Standard: 1,500 m / 4,920 ft (up to 2,000m / 6,561 ft) | |
Dimensions D x W x H | 433 x 188 x 278 mm / 17 x 8 x 11 in | |
International Protection (IP-Class) | IP 21 | |
Inclination along the roll axis | Permanent: max 35°; temporary (<10 min); max 45° | |
Inclination along the lateral axis | Permanent: max. 20° | |
Communication protocols | MODBUS RTU; Clear text protocol (SIO commands) | |
User-Interface | At the unit or via Operating Panel OP2 with text display | |
Data-Interface | RS232 RJ-45 plug for accessories (e.g. Interface adapter) | |
Electrical Interface | MNL-plug 4-pins (e.g. Tyco Electronics Universal Mate-N-Lok – Nr. 350779) | |
- Standard Equipment: Operating panel OP2, off heat duct, connecting cable, mounting plate, fuel cartridge holder, user manual, service fluid
| name | EFOY Pro 800 - Fuel Cell - EFOY-PRO800SET |
|---|---|
| SKU | EFOY-PRO800SET |
| Dimensions | 433 x 188 x 278 |
