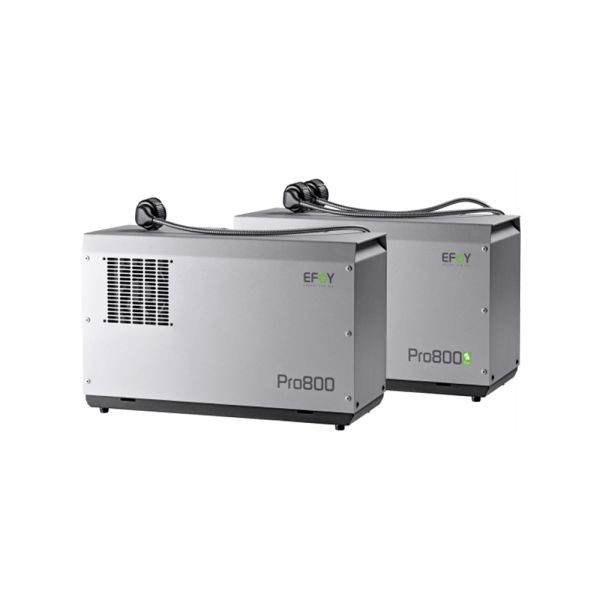

EFOY Pro 800 Duo - Fuel Cell - EFOY-PRO800DUOSET

EFOY Pro 800 Duo - Fuel Cell - EFOY-PRO800DUOSET

SKU
EFOY-PRO800DUOSET
SKU
EFOY-PRO800DUOSET

The EFOY Pro 800 delivers an output of 45 W and is also available as a Duo version with two fuel connectors for two EFOY fuel cartridges. Using the DuoCartSwitch, up to four fuel cartridges can be connected to one EFOY Pro 800 Duo for even more autonomy. Typical areas of application of the EFOY Pro 800 are, for example, measuring stations in the areas of environmental technology which have a continuously low energy consumption for a long duration.

EFOY Pro 800 Duo - Fuel Cell - EFOY-PRO800DUOSET

Fully automatic power generator

EFOY Pro fuel cells are intelligent power generators that can be used to continuously and fully automatically recharge batteries. The fuel cell is connected directly to the battery supplying the consumer and monitoring its charge status. Depending on requirements, the fuel cell switches on automatically, recharges the battery and then returns to standby mode – without any maintenance or user intervention required.

The EFOY Pro 800 delivers an output of 45 W and is also available as a Duo version with two fuel connectors for two EFOY fuel cartridges. Using the DuoCartSwitch, up to four fuel cartridges can be connected to one EFOY Pro 800 Duo for even more autonomy. Typical areas of application of the EFOY Pro 800 are, for example, measuring stations in the areas of environmental technology which have a continuously low energy consumption for a long duration.




EFOY Pro800 / 800 Duo
Power output45 W
Power output after (operating hours)125 W (4,500 h)
Nominal voltage12 V DC / 24 V DC
Charging current3.75 A / 1.88 A
Charging current after (operating hours)2.08 A / 1.04 A (4,500 h)
Recommended battery capacity2
12 V: 40 to 160 Ah
24 V: 10 to 100 Ah
Weight
8.0 kg (17.6 lbs) / 8.3 kg (18.3 lbs)
Warranty3
24 months / 4,500 operating hours
Connectable cartridges
M5, M10, MT60 / M28 only with M28 adapter
Number of connectable cartridges (with DCS1)
1 (2) / 2 (4)
Length fuel cartridge connector
70 cm / 27.6 in
Switching threshold for automatic battery
charging at 12 V / 24 V / 48 V4
On: 12.3 V / 24.6 V / --
Off: 14.2 V / 28.4 V / --
Required start-up voltage at 12 V / 24 V / 48 V
9 V / 18.5 V / --
Maximum battery voltage at 12 / 24 V /
48 V
16 V / 32 V / --
Noise level (at 1m / 7m distance)
42 dB(A) / 25 dB(A)
Nominal Consumption5
0.9 l/kWh
Quiescent current draw at 12 V
20 mA
Operating temperature6
-20 °C to +50 °C / -4 °F to +122 °F
Start-up temperature
+3 °C to +50 °C / +37.4 °F to +122 °F
Storing temperature
+1 °C to +50 °C / +34 °F to +122 °F
Altitude7
Standard: 1,500 m / 4,920 ft (up to 2,000m / 6,561 ft)
Dimensions D x W x H
433 x 188 x 278 mm / 17 x 8 x 11 in
International Protection (IP-Class)
IP 21
Inclination along the roll axis
Permanent: max 35°; temporary (<10 min); max 45°
Inclination along the lateral axis
Permanent: max. 20°
Communication protocols
MODBUS RTU; Clear text protocol (SIO commands)
User-Interface
At the unit or via Operating Panel OP2 with text display
Data-Interface
RS232 RJ-45 plug for accessories (e.g. Interface adapter)
Electrical Interface
MNL-plug 4-pins (e.g. Tyco Electronics
Universal Mate-N-Lok – Nr. 350779)



      Standard Equipment: Operating panel OP2, off heat duct, connecting cable, mounting plate, fuel cartridge holder, user manual, service fluid
    More Information
    nameEFOY Pro 800 Duo - Fuel Cell - EFOY-PRO800DUOSET
    SKUEFOY-PRO800DUOSET
    Dimensions433 x 188 x 278
