Cab Viewer 3 - Timespace Specification

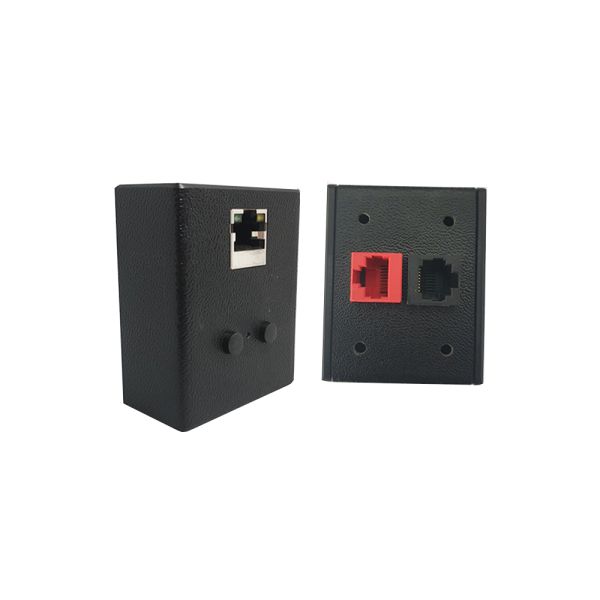

The Sure Transport Cab Checker Unit is designed to give easy access To the V400 menu and alert the driver to any camera or recording defects. The front RJ45 Sockets connects a Reviewer to the V400 DVR.
Warning - do NOT connect laptop to review socket as 12V will damage laptop
Buttons and LED’s
- The Cab Checker unit incorporates two push switches and three LED’s.
- The push switches can be assigned a function via the alarm input menu of the DVR such as the camera cycler function.
- The LED’s can be used to display warning such as Record Failure or Camera disconnection.
- Socket A links through to the Cab Checkers front RJ45 Socket and should be connected directly to the Reviewer port on the front of the V400
- Socket B (Red) connects the Cab Checker unit to the V400 18 way and 10 way Molex sockets
Socket B connects as follows:
- Button A - Green + Blue/White
- Button B - Brown + Brown/White
- Blue LED - Blue
- Yellow LED - Green/White
- Green LED - Orange
- Common 12v - Orange White
- ALARM INPUT menu, set #10 to CAM CYCLER
- ALARM CAM CYCLER, set each connected camera to 1 second
- ALARM OUTPUT menu, set 1 Closed when RECORD LED
- ALARM OUTPUT menu, set 2 Closed when CAM DISCONNECTED
