24 Channel - DVRV500-24 - Timespace
24 Channel - DVRV500-24 - Timespace
SKU
DVRV500-24
SKU
DVRV500-24
- 1080p HD Resolution (8* IP Channel)
- 16 Independent Analogue Video Inputs
- H.264 compression
- E-Marked for Vehicle CCTV
- 200 Frames per Second
- LANLink & PCLink
- 500GB, 1TB or 2TB HDD Options
- 500GB or 1TB SSD Additional
24 Channel - DVRV500-24 - Timespace
Timespace DVRV500 - 24 Channel Specification
This 24 channel V500 digital video recorder provides customers with sixteen channels of analogue camera inputs and eight POE IP channel inputs of 1080p HD resolution. The digital video recorder provides 200fps and uses H.264 compression to reduce file sizes to a fraction of their original size whilst maintaining video quality. The Timespace products are fully compatible with LANLink and PCLink meaning footage can be easily reviewed and this product is e-marked meaning it can be put onto vehicles with all the correct approvals.
V500 Specification (Download) | |||
|---|---|---|---|
| Feature | Capability | Feature | Capability |
| Video Inputs | 8 IP and 16 SD Analogue | Global Image Rate | 200 IPS |
| Audio Inputs | 2, Selectable Line or Mic Level | Hard Disk Drive | Up to 4TB |
| 4 Video Outputs | Programmable Main / Aux | Video Standard | PAL/NTSC |
| PoE (Ethernet) | All 8 IP Channels | Resolution | 1080p IP Channel - 720 x 288 Analogue |
| Video Compression | H.264 | Ease of Install | Quick Release Mounting |
| G-Sensor | 3 Axis | Approvals | E-Marked, CE Mark, R118, RoHS, WEEE |
| IP Rating | IP50 | Operating Temperature | -10 to 50°C |
| Alarm Inputs | 10 Selectable 2V – 24V Level | Alarm Outputs | 4 (Logic Output) |

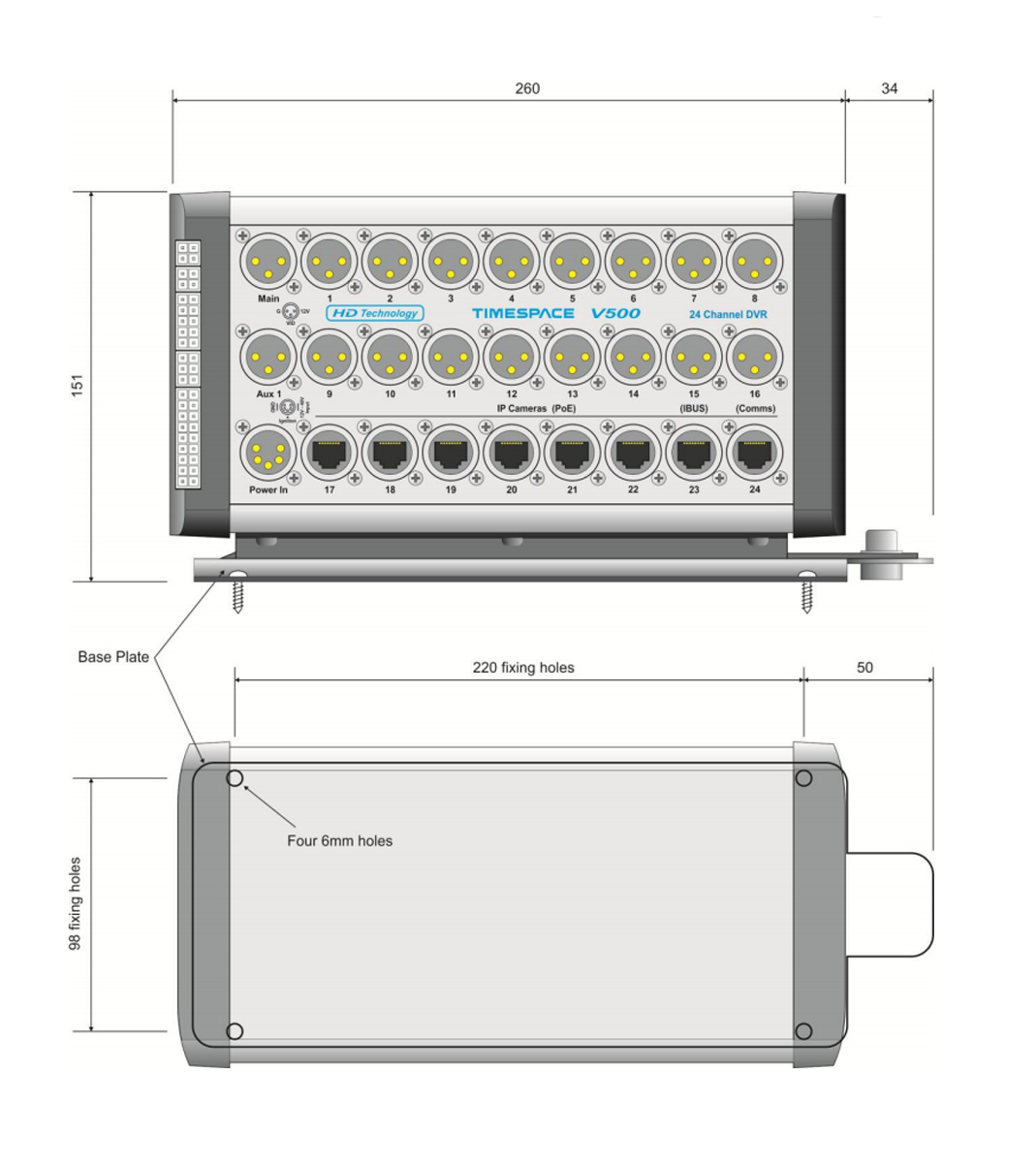

| Dimensions (mm) Including Mounting Plate | 292(l) x 132(w) x 143(h) | CAN Engineering Data | Built-in |
Benefits of IP Cameras
IP (Internet Protocol) cameras are powered over ethernet (PoE) and offer a far superior camera image quality/resolution to that of any other camera output. IP cameras can also be more cost-effective as they often cover a much wider range than that of an analogue camera. It would need up to four low-resolution analogue cameras to cover the same recording area as a single IP camera.
AHD vs IP (Click Image to Expand)
H.264 Video Compression
H.264 is a video compression for digital video recorders to use when reducing video file sizes without losing resolution in the captured footage. H.264 standard compresses the footage so that only half the storage space is used however the same video quality is maintained. Advanced Video Coding (AVC) uses Macroblocks to process information in 16x16px blocks.
E11 Certification Vehicle Approval
The E11 Mark is the British specific Mark that covers equipment/vehicles supplied to the automotive industry. This includes commercial vehicles, construction machinery and general vehicle use and basically means the unit has been approved by ECU compliance and quality control regulations. (source)
Timespace PCLink Suite
The PCLink Suite allows users to review footage and blur objects/faces using an inbuilt software tool in the event that footage is used in evidence for courts or policing. The system also offers user-friendly playback and reviewing alongside alarm and motion markers for rapid analysis of footage.
Live view features include multi-camera live video streaming, playback, real-time live map locations of vehicles and watermarking/password protection.
Timespace LANLink System
The LANLink System offers a health overview for a number of Timespace Digital Video Recorders fitted onto numerous vehicles. LANLink is presented as a series of web pages viewed from any browser-capable device. Using simple LED icons and easy to navigate pages, LANLink allows operators to see the health of their entire fleet of DVRs
Specifications
| name | 24 Channel - DVRV500-24 - Timespace |
|---|---|
| Product Type | Digital Video Recorders |
| SKU | DVRV500-24 |
| Channel Input/Output | IP (HD Internet Protocol), Analogue, Hybrid (Analogue / IP) |
| e-marked | Yes |
| Video Channels | 24 |
| FPS | 200 FPS |
| Video Codec | H.264 |
| GPS | No |
| Video Resolution | 720x288 |
| Audio/Video (AV) | Video and Audio |
| Storage Media | HDD |
| Storage Capacity | 2 TB |
| Maximum Capacity | 2 TB |
| IR Remote Control | No |
| Alarm Inputs | 10 inputs |
| Alarm Outputs | 4 Outputs |
| Audio | Yes |
| Audio Channels | 2 Channel |
| Security | Encrypted Storage, Password Protection (Settings) |
| Dimensions | 292(l) x 132(w) x 143(h) |
| GPS | Optional |
| Built in | GPS, 4G, 3G, Wi-Fi |
