4 Channel - DVRX200-04 - Timespace
4 Channel - DVRX200-04 - Timespace
- Used in Covert Surveillance
- 4 Independent BNC Video Inputs
- E-Marked
- Designed for Policing
- 25 Frames per Second
- LANLink & PCLink
- 250GB HDD
- Single Button Start/Stop

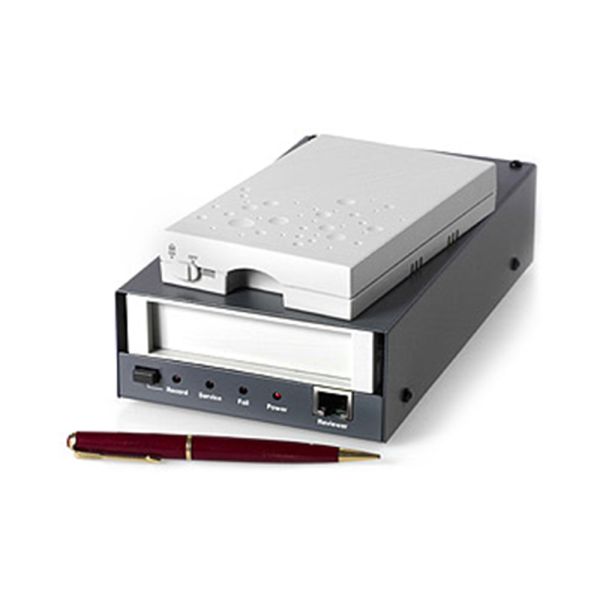

Timespace DVRX200 - 4 Channel Specification
The small compact design makes it ideal for a variety of CCTV applications, including Law Enforcement, Military CCTV and Surveillance and Transport CCTV (buses, coaches, trains etc.).
The silent running and small footprint combined with low power consumption make the X200 ideal for rapid deployment and covert surveillance. It can be built into a PELI case for rugged outside use
whilst still being portable.
Timespace X200 is a true multiplexer allowing the recording of up to 4 video channels at once along with 2 audio inputs. Records onto hard drives up to a massive 500GB capacity Timespace allows the selection of a number of video recording options including variable frame rate capture per channel and linked alarm. Programmable with Video Motion Detection (VMD), Event Scheduling and 4 resolution settings, Timespace has never been as efficient as now in saving memory.
Timespace allows the switching between live video feeds and review data whilst still recording at 25fps. Each image is saved in proprietary MPEG format with the camera number, date and time watermarked onto every image, ensuring a written secure audit trail. This important data can then be retrieved extremely quickly and easily via a USB download directly onto a PC or laptop. The password protection facility ensures that data is kept secure and only those with authorisation can access it.
X200 is not supplied with a PSU, this must be purchased separately.
Please note: The Hard Disk and Reviewer must be purchased separately. The Timespace Reviewer is needed to program and review data captured and requires the Timespace USB lead.
Sample Footage of the Timespace X200: Car Break-In
E11 Certification Vehicle Approval
The E11 Mark is the British specific Mark that covers equipment/vehicles supplied to the automotive industry. This includes commercial vehicles, construction machinery and general vehicle use and basically means the unit has been approved by ECU compliance and quality control regulations. (source)
Timespace PCLink Suite
The PCLink Suite allows users to review footage and blur objects/faces using an inbuilt software tool in the event that footage is used in evidence for courts or policing. The system also offers user-friendly playback and reviewing alongside alarm and motion markers for rapid analysis of footage.
Live view features include multi-camera live video streaming, playback, real-time live map locations of vehicles and watermarking/password protection.

Timespace LANLink System
The LANLink System offers a health overview for a number of Timespace Digital Video Recorders fitted onto numerous vehicles. LANLink is presented as a series of web pages viewed from any browser-capable device. Using simple LED icons and easy to navigate pages, LANLink allows operators to see the health of their entire fleet of DVRs

name | 4 Channel - DVRX200-04 - Timespace |
---|---|
Product Type | Digital Video Recorders |
SKU | DVRX200-04 |
e-marked | Yes |
Video Channels | 4 |
FPS | 25 FPS |
Video Codec | MPEG2 |
Video Resolution | 720x288 |
Video Format | Proprietary |
Audio/Video (AV) | Video and Audio |
Storage Media | HDD |
Storage Capacity | 250 GB |
Maximum Capacity | 250 GB |
Activation | Manual / Panic |
IR Remote Control | No |
Power Supply | 12VDC |
Power Consumption | 600mA |
Peak Power Consumption | 2.8 amp |
Alarm Inputs | 4 Inputs |
Alarm Outputs | 1 Output |
Audio | Yes |
Audio Channels | 1 Channel |
Security | Encrypted Storage |
Dimensions | 220mm x 116mm x 52mm |
GPS | No |
