Details
Timespace Digital Video Recorders are designed to provide cost-effective, reliable and robust performance for long term surveillance

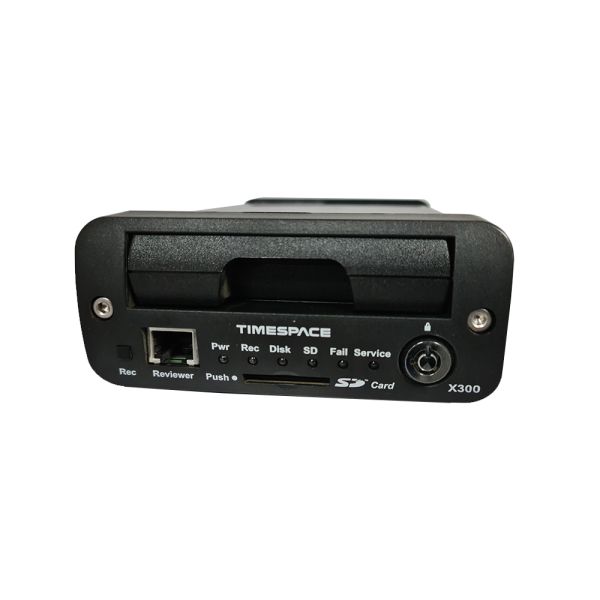

The low power requirements and silent operation make the X300 perfect for covert lifestyle surveillance. Using the motion detection feature the X300 is ideal for long-term serious and organised crime investigations. The compact design and rugged, removable "hot swappable" shock mounted data cartridge ensures integrity of data storage.An optional compact flash SDHC card makes daily footage retrieval quick and simple, ensuring discreet recovery of time lapse or motion footage for ongoing surveillance operations. Combined with encryped watermarking to give security for prosecution, the proprietary XBA file format ensures sensitive evidence can only be viewed by authorised personnel.
Designed with the user in mind, the X300 has a simple user interface ensuring easy installation and set up to capture crystal clear video footage using a single button record function. The recording time calculator feature ensures that the recorder settings and disk cartridge size will provide sufficient recording time for successful and error free operation.
The Timespace PCLink software suite enables quick and simple access to review event data, using the time alarm or motion sensor file markers. Footage can be viewed remotely via wireless data transfer or IP connection over 3G network. Files can be uploaded automatically or via timed scheduled transfer.
Please Note : The Hard Drive and Reviewer must be purchased separately. The Timespace Reviewer is needed to program and review data captured and requires the Timespace USB Lead.
General Features:
- Single Button Start/Stop Recording or Auto Record on Power-up
- Recorder Status Indicators (6 LEDS)
- Simultaneous Record, Playback, Live View and File Download
- MPEG Based Format Full Image Update
- Removable Hard Disk Media Cartridge - Lockable
- Simple Intuitive Menu System with Help Screens
- Optional Embedded GPS Position & Speed
- Normal Continuous Alarm And Motion Triggered Recording
- 7 Day Programmable Timer Recording
- Local Playback Using Optional X201 Reviewer - Rewind, Play, Stop, Play, Fast Forward, Jog Functions
- Local Set Up And Configuration Using Optional X201 Reviewer
- Image Search By Time / Date or File Name
- File Download via Ethernet (FTP)
- Quick Review Alarm Event Footage Markers
- Pc Live View & Review Download & Storage
- Remote Control Via RS232 Interface
Security Features:
- Proprietary Video File Format XBA
- User & Admin Password Protected Functions
- Each Image Watermarked (SHA-2-AES Authentication - 256 bit)
- Embedded Camera Number, Date & Time In Each Image
- 12 User Programmable Embedded Characters Per Channel
Optional Features:
- 25ips Global SD Memory Back Up - SDHC 4GB up to 32GB
(4.5 Hours Loop Recording at 25ips Super Resolution / 32GB SD Card) - File Download Via SD Card
- CAN Bus Recording
Additional Information
SKU | DVRX300-04 |
---|---|
Video Channels | 4 |
Frames Per Second | 25 FPS |
Video Codec | MPEG2 |
Video Resolution | 720x576 (D1 PAL) |
Video Format | Proprietary |
Colouration | Colour |
Audio/Video (AV) | Video and Audio |
Storage Media | HDD |
Storage Capacity | 250 GB |
Maximum Capacity | 1.5 TB |
Activation | Manual / Panic |
IR Remote Control | No |
Power Supply | 10 - 15 VDC |
Power Consumption | 850mA |
Peak Power Consumption | 3A |
Alarm Inputs | 4 Inputs |
Alarm Outputs | 3 Outputs |
Audio | Yes |
Audio Channels | 2 Channel |
Security | Encrypted Storage |
Approvals | 89/33b/EEC Generic |
Dimensions | 210mm x 120mm x 50mm |
