WAT-902H2U - Watec - Ultimate

WAT-902H2U - Watec - Ultimate

SKU
WAT-902H2U
£377.94 £314.95
SKU
WAT-902H2U
  • 1/2 interline transfer CCD Sensor
  • Effective Pixels: 752(H) x 582(V)
  • Resolution: 570 TVL
  • Lux: 0.0001 at F1.4
  • Power Supply: DC12V
  • Power Consump: 1.32W (110mA)
  • Dimensions: 35.5 × 40 × 63 (mm)
  • Weight: 98g
Cameras
WAT-902H2U - Watec - Ultimate

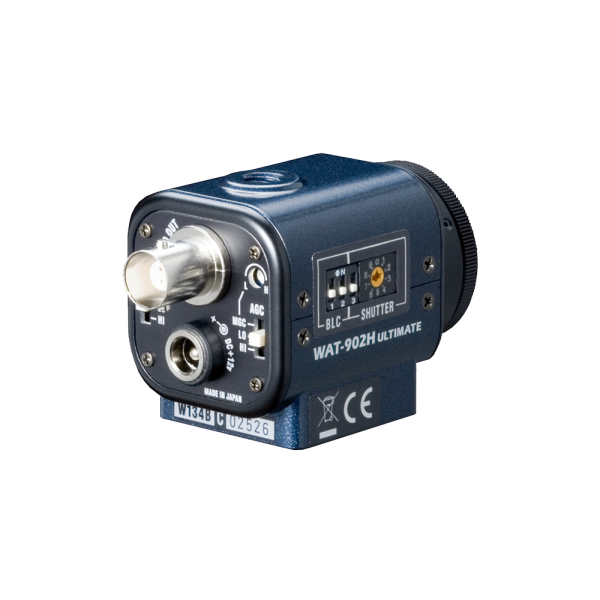

Watec WAT-902H2U - Camera Specification

WAT-902H2 ULTIMATE Description

The WAT-902H2 ULTIMATE (1/2" format) is the newest and lowest light gather monochrome camera offered by Watec. With practical application in mind, Watec redesigned the base platform of the 902 series cameras to gain more sensitivity and make available functionality control of the camera providing the user the ability to apply this camera to nearly any application requiring near IR visibility and full camera control.

WAT-902H2 ULTIMATE Characteristics & Functions

- Super High Sensitivity(Near IR spectrum)
- Multi functions
- Compact & Lightweight
- Electronic Iris
- AGC/MGC
- Gamma Correction
- Blacklight Compensation
- Video/DC Iris Auto-select

Backlight Compensation (BLC)

Backlight Compensation (BLC) technology works by reducing the dynamic range of the entire image while retaining the overall contrast. By compensating for unbalanced in a scene, the detail is restored throughout the field of view so as to provide better visibility to identify an object of interest.

Backlight Compensation (BLC)
More Information
nameWAT-902H2U - Watec - Ultimate
Product TypeCameras
SKUWAT-902H2U
Channel Input/OutputAnalogue, CVBS (Analogue)
Camera ShapeBox/Body
ColourBlack
e-markedNo
Built-in Image Sensor1/2" interline transfer CCD image sensor
Number of effective pixels 752(H) × 582(V)
Scanning System2:1 interlace
Infra-Red (IR)No
S/NMore than 50dB (AGC OFF)
Maximum Resolution 570TVL (Center)
IPNo
Dimensions 35.5 × 40 × 63 (mm)
Operating Temperature-10°C - +40°C
Output type 1Vp-p, 75ohms, unbalanced
Storage Temperature-30°C - +70°C
Power Consumption1.32W
