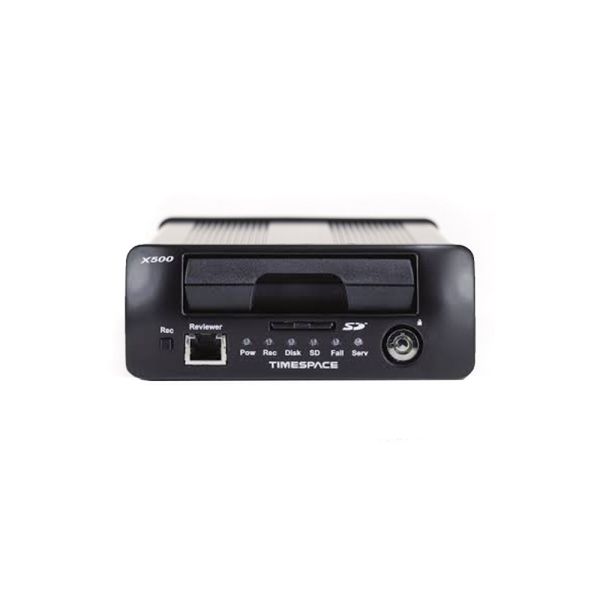

8 Channel - DVRX500-8 Hybrid - Timespace

8 Channel - DVRX500-8 Hybrid - Timespace

  • 4K or 1080p HD Resolution
  • 4 IP Video Inputs
  • 4 Analogue Video Inputs
  • H.264 compression
  • Designed for Policing
  • 100 Frames per Second
  • LANLink & PCLink
8 Channel - DVRX500-8 Hybrid - Timespace

Timespace DVRX500 - 8 Channel Specification

This 8 channel X500 provides customers with an eight-channel hybrid recorder using a mixture of four analogue and four 4K HD 8MP IP camera inputs. The digital video recorder uses H.264 compression with capability of using H.265 in the future. This is to reduce file sizes to a fraction of their original size whilst maintaining video quality. The Timespace products are fully compatible with LANLink and PCLink meaning footage can be easily reviewed, this product is designed for the police with its covert silent recording mode and motion detection system.

  • 500GB, 1TB, 2TB, 3TB or 4TB HDD Options

4K Resolution Capability

What do we mean when we say 4K resolution? 4K video resolution is quite the step up from your standard 720p or 1080p resolution. 4K is four times the resolution of 1080p (Full HD) and in a 16:9 ratio contains 3,840 x 2,160 pixels. a 4K video contains more than 8 million pixels compared with 2 million pixels in your 1080p video image. This will be mostly noticeable on finer details such as the rendering of hair, feathers or general details up close.

4K vs HD (Click Image to Expand)

Benefits of IP Cameras

IP (Internet Protocol) cameras are powered over ethernet (PoE) and offer a far superior camera image quality/resolution to that of any other camera output. IP cameras can also be more cost-effective as they often cover a much wider range than that of an analogue camera. It would need up to four low-resolution analogue cameras to cover the same recording area as a single IP camera.

AHD vs IP (Click Image to Expand)

H.265 Video Compression

The compression ratio of H.265 is almost double that of H.264 and offers significant improvements to the prediction motion. H.265 uses High-Efficiency Video Coding (HEVC) which allows for reduced file sizes and therefore less bandwidth rather than Advanced Video Coding (AVC). Coding Tree Units, which is how H.265 processes information, can process 64x64px blocks rather than 16x16px using H.264.

H.265 Video Compression (Click Image to Expand)

H.264 Video Compression

H.264 is a video compression for digital video recorders to use when reducing video file sizes without losing resolution in the captured footage. H.264 standard compresses the footage so that only half the storage space is used however the same video quality is maintained. Advanced Video Coding (AVC) uses Macroblocks to process information in 16x16px blocks.

HD High Definition Logo


More Information
name8 Channel - DVRX500-8 Hybrid - Timespace
Product TypeDigital Video Recorders
Channel Input/OutputIP (HD Internet Protocol), Analogue, Hybrid (Analogue / IP)
Video Channels8
Video CodecMPEG2
Video Resolution1920x1080 (HD 1080)
Video FormatProprietary
Audio/Video (AV)Video and Audio
Storage MediaHDD
Storage Capacity4 TB
Maximum Capacity4 TB
ActivationManual / Panic
IR Remote ControlNo
Power Supply10 - 15 VDC
Alarm Inputs4 Inputs
Alarm Outputs3 Outputs
Audio Channels2 Channel
SecurityEncrypted Storage
Dimensions206 x 136 x 53

Product Reviews

Write Your Own Review
You're reviewing:8 Channel - DVRX500-8 Hybrid - Timespace

Downloads & Datasheets

  • 4K or 1080p HD Resolution
  • 4 IP Video Inputs
  • 4 Analogue Video Inputs
  • H.264 compression
  • Designed for Policing
  • 100 Frames per Second
  • LANLink & PCLink
