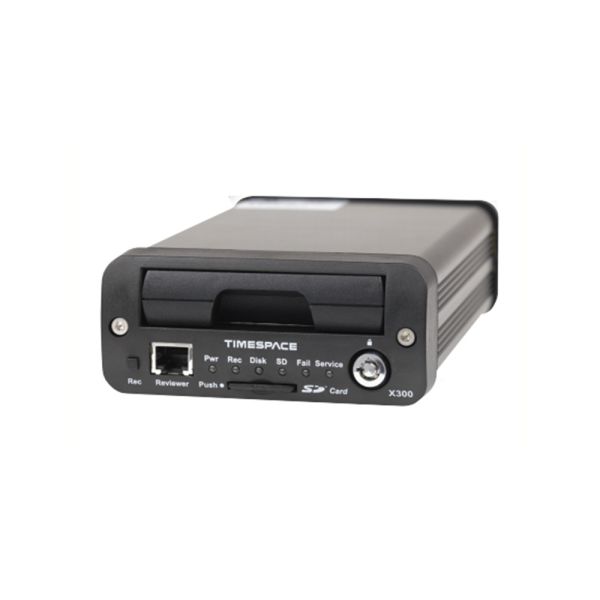

Timespace X300-16M 16 Channel DVR

The Timespace X300-16M digital video recorder (DVR) provides cost-effective, reliable and robust performance in a diverse range of mobile applications, and is ideal for the general vehicle and coach/bus sector.



The Timespace X300-16M digital video recorder (DVR) provides cost-effective, reliable and robust performance in a diverse range of mobile applications, and is ideal for the general vehicle and coach/bus sector. As a drop-in replacement for the Timespace X200 CCTV systems, the X300-16M is an attractive upgrade option.

The X300-16M has all the features of Timespace’s highly-regarded X300 DVR, but with 16 channels of analogue (SD) video to provide greater capacity for camera coverage. Crystal-clear images combine with SHA-2/AES-256 watermarking to give security of evidence.

Reviewing the video footage using Timespace PCLink software is quick and simple using time and date or alarm markers. Recorded files can be uploaded from the removable data cartridge, or remotely via wireless data transfer or mobile connection.


Recording Performance

• Up to 16 independent video channels with selectable image rates for each camera up to 25/30 IPS (PAL/NTSC)
• Compression using proprietary MPEG format with D1 option giving 720 X 576 (PAL) frame size
• Dual loop recording at 25 IPS using solid-state SD card for added footage security in extreme conditions
• Selectable compression setting for each camera to ensure maximum resolution and archive storage.


• Live view output for remote security monitoring at control centre
• Quick and easy incident footage upload and system performance monitoring via WiFi or mobile networks.

Security Features

 • Lockable recording media cartridge for security and reliable operation
 • Proprietary video file format XBA
 • File access/download password protection and encryption
 • Each image watermarked (SHA-2 AES Authentication – 256 bit)
 • Embedded camera number, date and time in each image.


• XBA file compatible with PCLink software, allowing full function review for all Timespace recorders with one software suite
• Compatible with Timespace Reviewer and all other Timespace accessories.


• Single-button start/stop recording or auto record on power-up
• Recorder status indicators (6 LEDs)
• Simultaneous record, playback, live view and file download
• MPEG based format, full image update
• Removable hard disk media cartridge – lockable
• Simple, intuitive menu system with help screens
• Optional embedded GPS position & speed
• Normal, continuous, alarm and motion-triggered recording
• 7-day programmable timer recording
• Local playback using Reviewer
• Local set-up and configuration using Reviewer
• Image search by time/date or filename
• Remote set-up and download via LAN, WiFi or mobile network
• Quick review alarm event footage markers
• PC live view, review, download & storage
• 25 IPS global SD memory backup – SDHC 4GB up to 32GB
• File download via SD card
• CANLink data recording (view in sequence with recorded footage)


Connections / Interfacing

• Camera 16 Molex inputs with power
• Video out 2 Molex inputs with power
• Audio in 1 Molex input mic-level
• Audio out 1 Molex output mic-level
• Timespace Reviewer RJ45
• GSM / GPS / RS232 9-way D-Type connector
• Alarm inputs 10 – Screw terminal plug
• Power down Selectable from alarm inputs
• Alarm / LED output – Configurable 3 – Screw terminal plug
• Power input 2.5 mm DC socket or screw terminal
• CAN 2 Molex inputs

Physical Characteristics

• Enclosure Extruded Aluminium, with end caps
• Dimensions (mm) 212 x 120 x 52
• IP rating IP50
• Operating temperature range (ºC) -10 – 50
• Humidity (% r.h., non condensing) 10 – 90
• Mounting options Free-standing or screw-mounted
• Power supply (V DC) 12
• Continuous power – without Reviewer (W) 10.0 (0.85 amps)
• Reviewer continuous power (W) 3.0 (0.25 amps)
• Maximum current – start-up (A) 2.0
• Power-up time to recording (seconds) <12
• Weight – with removable cartridge (g) 890

Regulatory Approvals

• CE Mark (EN55032:2012, EN 55024:2010)
• E Mark
• VCA CoP approval
• RoHS

Additional Information

IR Remote Control No
