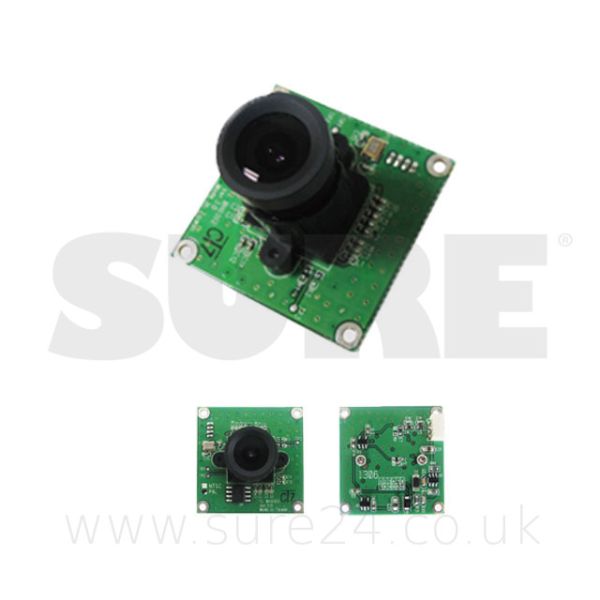

Talitor BH0302F 1/4" Hi-Resolution Pinhole Camera - 22 x 26mm

Talitor Hi Resolution Pinhole Camera 1/4 Micron Image Sensor Ideal For Covert Hides
Excl. VAT: £38.00 Incl. VAT: £45.60



Hi Resolution Pinhole Camera ideal for covert hides - Works with Talitor DVR boards

High-sensitivity mode for low-light and IR 940nm IR filter.

Key Features

  • 1/4" Micron (Aptina) Image Sensor
  • Mpeg-4 Codec
  • Image resolution: 720P(1280x720) / D1(720x480) / CIF(320x240)
  • Up to 30fps (NTSC) / 25fsp (PAL), for recording and Playback (1, 2, 3, 5, 13/15, 25/30 fps)
  • Video quality selectable (Best, Better, Fair)
  • A/V input format (NTSC/PAL)
  • Time/Date stamp embedded onto video recording and position, format, and colour selectable position, format, and colour selectable
  • Motion detection (Low, Medium, High ) for users option in menu
  • Motion area 150 grids
  • Schedule recording
  • Recording file length selectable
  • Snapshot at 640x480 with BMP format
  • Supports external trigger recording when NC
  • SD card capacity up to 32GB (extensible)
  • Playback function with composite A/V out
  • SD card playable on Windows Media player
  • OSD menu operating with IR-remote controller or keypad

Additional Information

Camera Type Board
Colouration Colour
Infra-Red (IR) Yes
Lens Size 2.5mm
Lens Type Pinhole
Chip Size (Quarter Inch)
Audio/Video (AV) Video Only
Environment Internal
Power Consumption 5V~12VDC < 300mW
Sense Up / DSS No
Number of effective pixels 640 x 480
Lux > 11.5V/lux-s at 550nm
Dimensions 22mm x 26mm
