PV-PH10W - Car Mount Camera Specification
The innovative and stylish design conceals a covert infra-red video recording system producing law enforcement grade video and audio which is also watermarked with the time and date.
All recordings are stored on a Micro SD card (16gb card provided) using standard H.264 encoding with a .MOV video file format. The built-in battery will provide up to 3 hours of continuous recordings with the IR night-vision turned off and up to 90 minutes with infra-red turned on.

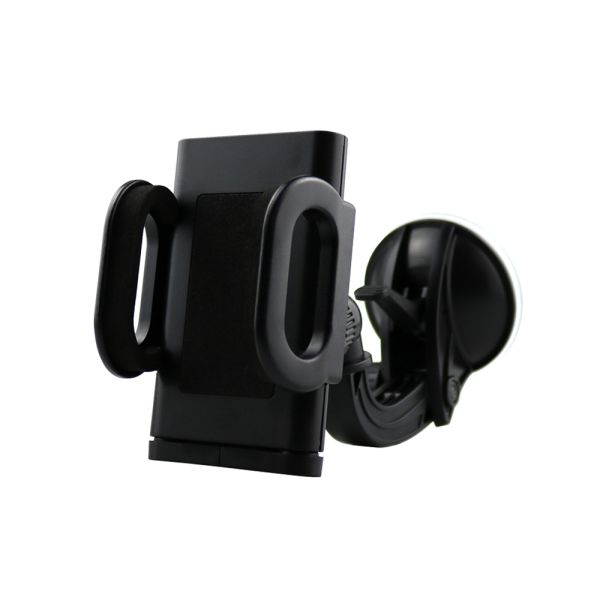

Compatible with any mobile phone up to 8cm width, the PH10W DVR is also supplied with a 360 degrees swivel/suction mount allowing you to adjust the angle of capture to your requirements.
There is also a switch hidden on the unit permitting you to change recording modes between continuous or motion detection capture.
Motion Detection Benefits
Motion detection improves your home security as a device can lay dormant to avoid filling memory cards with wasted still footage and will activate when motion is detected.
Alongside avoiding wasted memory it will also save on energy usage and is more convenient when reviewing footage.
Record by Detecting Motion
HD Resolution Capability
HD refers to high definition or 720p/1080p resolution, 1080p is known as Full HD. This resolution is a significant step up from 480p which can be seen in the image (on the right).
The first figure (1920) refers to horizontal pixels and the second figure (1080) denotes vertical resolution. The simple difference between HD and SD images is the number of pixels contained in the image
HD vs SD (Click Image to Expand)
H.264 Video Compression
H.264 is a video compression for digital video recorders to use when reducing video file sizes without losing resolution in the captured footage. H.264 standard compresses the footage so that only half the storage space is used however the same video quality is maintained. Advanced Video Coding (AVC) uses Macroblocks to process information in 16x16px blocks.
LawMate Live-View App
To manually install PV Cam Viewer on your smartphone, go to App Store (iOS) or Play Store (Android) on your phone. Enter “PV Cam Viewer” to search and download the App “PV Cam Viewer”. Once the PV icon shows on your phone, the app is successfully installed.
Live-View App QR Codes (Click Image and Scan)
The Benefit of Wi-Fi
With the ability of Wi-Fi connectivity, you can instantly review the footage you have captured on a smartphone, desktop application or tablet depending on what software comes with your device. Many will also allow you to live-stream the video content with transport apps also offering tracking.
|name||Car Mount Camera - PV-PH10W - LawMate|
|Product Type||Spy Cameras|
|Built-in Image Sensor||1/3" progressive CMOS sensor|
|Sensor Sensitivity||3.3 Lux @F 2.0 (IR OFF)|
|Lens F/No||F 3.2|
|Field of View||66°|
|Video Resolution||1920x1080 (HD 1080)|
|Memory Type||Micro SD Card|
|Storage Media||Micro SD|
|Storage Capacity||32 GB|
|Power Supply||DC 5V|
|Power Consumption||350 mA-380 mA（IR OFF)(IR ON + 330mA)|
|Battery Type||DC 3.7V / 1350 mA high polymers battery(XK384085)|
|Battery Life||Continuous recording 170 min(IR OFF) / 85min (IR ON)|
|Record Time||160 min @ 1920*1080 resolution ( 16GB SD card )|
Downloads & Datasheets
- 1080p HD Video Quality
- Single-Button Operation
- Infrared Night Vision Camera
- Built-in Rechargeable Battery
- Angle of View 66 Degrees
- Supports up to a 32gb Micro SD Card
- H.264 .MOV File Format
- 106 x 50 x 12mm
