KPC-C190PUP4 - KT&C - Analogue Camera

KPC-C190PUP4 - KT&C - Analogue Camera

SKU
KPC-C190PUP4
£108.18 £90.15
SKU
KPC-C190PUP4

○ Image Rotation OFF, H-FLIP, V-FLIP, HV-FLIP
○ 800TV Lines
○ CVBS(1.0Vp-p Composite 75Ω)
○ Pinhole lens 3.7mm
○ WDR, 2DNR
○ Digital Day&Night

KPC-C190PUP4 - KT&C - Analogue Camera

KT&C KPC-C190PUP4 - Analogue Camera Specification

This bullet analogue camera comes with a 3.7mm pinhole lens and offers wide dynamic range for better image quality in low/high light situations. The video resolution for this bullet camera is 800TV Lines and the camera is IP67 weatherproof for using outdoors or in damp conditions.

Digital Image Stabilization (DIS)

Digital Image Stabilization (DIS) uses the motion detection core to stabilize the image from shaking due to external vibrations like oscillation and wind. It uses pixels outside the border of the visible frame to provide a buffer for the motion.

Digital Image Stabilisation (DIS)

Wide Dynamic Range (WDR)

So what is Wide Dynamic Range? When part of an image is extremely bright but another part is so dark that you can't see any details, that's dynamic range—the difference in lighting. Cameras with wide dynamic range (WDR) have special software that allows them to balance that lighting for one clear image.

Wide Dynamic Range (WDR)

Backlight Compensation (BLC)

Backlight Compensation (BLC) technology works by reducing the dynamic range of the entire image while retaining the overall contrast. By compensating for unbalanced in a scene, the detail is restored throughout the field of view so as to provide better visibility to identify an object of interest.

Backlight Compensation (BLC)

2DNR Digital Noise Reduction (DNR)

Digital Noise Reduction (DNR) technology is crucial for a surveillance camera. 2DNR works by analyzing individual frames of video, identifying algorithmically and correcting those pixels that likely represent noise.

2DNR Noise Reduction

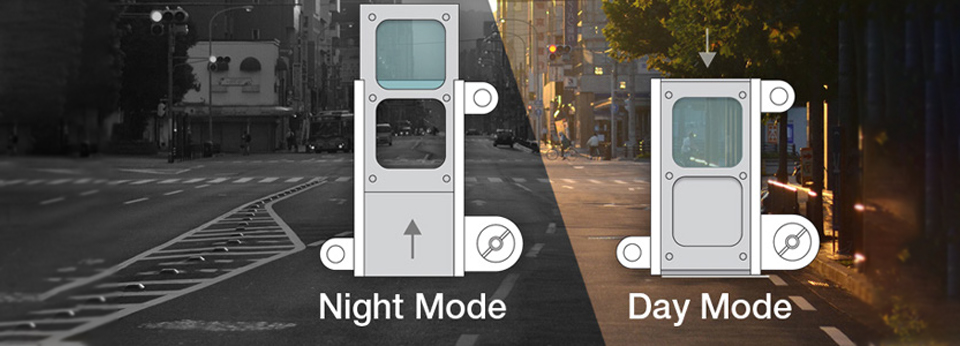

True Day/Night (TDN)

True Day/Night feature can be used for precise colour reproduction. With a built-in dual filter system, known as the Infrared Cut filter Removal (ICR) mechanism, the infrared cut filter can be used at day time, or in bright lighting conditions, to provide enhanced image in full-colour. At night time, or in harsh lighting conditions, it will be removed for greater light sensitivity in monochrome mode.

True Day / Night mode
KPC-C190PUP4 schematic

Specifications

More Information
nameKPC-C190PUP4 - KT&C - Analogue Camera
SKUKPC-C190PUP4
Channel Input/OutputCVBS (Analogue)
ColourBlack
Built-in Image Sensor1/3.2" Exmor RS Progressive Scan SONY STARVIS CMOS
Number of effective pixels1.27MP 1297(H) x 977(V)
Maximum ResolutionHorizontal 800TV Lines
Lens TypeBoard
Focal Length3.6mm, F 2.0
Angle of View94.91˚ (D)x81.9˚ (H)x66.5˚ (V)
White BalanceATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK
Dynamic RangeWDR / ATR / OFF
AGCMIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX
Day & Night FunctionElectronic D&N
Output typeCVBS(1.0Vp-p Composite 75Ω) NTSC/PAL
Operating Temperature-10℃~+50℃(Humidity less than 80%)
Storage Temperature-20℃~+60℃(Humidity less than 80%)
Power Consumption12VDC(±10%), 60mA max.
DimensionsΦ19X54.8mm (Waterproof type)
Camera ShapeBullet
Day & NightElectronic D&N
Lens Size3.6 mm
Motion DetectionN/A
