Concept Pro VB4112HRS - Analogue Camera Specification

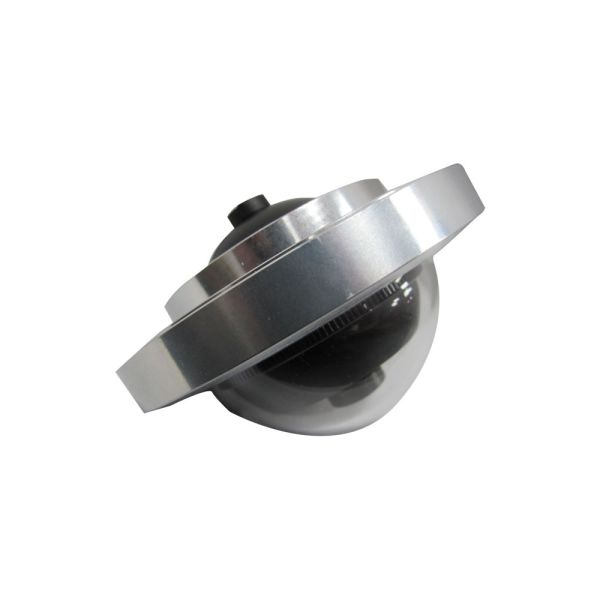

Analogue Fixed Lens Vandal Dome Vehicle Cameras
Enclosed in a hardened polycarbonate and IP67 weather-resistant casing, the Analogue Fixed Lens Vandal Dome Vehicle Cameras (VB4112) provide an effective, robust surveillance solution for a range of vehicle security applications. Standard and angled surface mount adaptors are available for easy installation on surfaces like ceilings, walls and exterior of vehicles. The camera has a wide operation temperature (-10°C to +50°C) range and is not subject to distortion from magnetic fields.
IP Rating - What is IP67?
IP or Ingress Protection ratings are international standard ratings to define the sealing effectiveness of electrical enclosures against dirt, moisture and foreign bodies. The first number that follows IP has a specific meaning which indicates the level of protection the equipment has to foreign bodies excluding water. The second number will identify the level of protection the product has to moisture (submersion, drips, sprays etc).
(6) Totally dust-tight. Full protection against dust and other particulates, including a vacuum seal, tested against continuous airflow.
(7) Protection against full immersion for up to 30 minutes at depths of 3 feet.
Wide Dynamic Range (WDR)
So what is Wide Dynamic Range? When part of an image is extremely bright but another part is so dark that you can't see any details, that's dynamic range—the difference in lighting. Cameras with wide dynamic range (WDR) have special software that allows them to balance that lighting for one clear image.
Backlight Compensation (BLC)
Backlight Compensation (BLC) technology works by reducing the dynamic range of the entire image while retaining the overall contrast. By compensating for unbalanced in a scene, the detail is restored throughout the field of view so as to provide better visibility to identify an object of interest.
2DNR Digital Noise Reduction (DNR)
Digital Noise Reduction (DNR) technology is crucial for a surveillance camera. 2DNR works by analyzing individual frames of video, identifying algorithmically and correcting those pixels that likely represent noise.
True Day/Night (TDN)
True Day/Night feature can be used for precise colour reproduction. With a built-in dual filter system, known as the Infrared Cut filter Removal (ICR) mechanism, the infrared cut filter can be used at day time, or in bright lighting conditions, to provide enhanced image in full-colour. At night time, or in harsh lighting conditions, it will be removed for greater light sensitivity in monochrome mode.
E11 Certification Vehicle Approval
The E11 Mark is the British specific Mark that covers equipment/vehicles supplied to the automotive industry. This includes commercial vehicles, construction machinery and general vehicle use and basically means the unit has been approved by ECU compliance and quality control regulations. (source)
|name||VB4112HR2.5S - 960H - 2.5mm Lens - Concept Pro|
|Built-in Image Sensor||1/2.9” SONY IMX323 Exmor CMOS sensor|
|S/N||≥52dB (AGC Off)|
|Dynamic Range||Wide Dynamic DWDR|
|Day & Night||Auto|
|Maximum Resolution||960H or 600TVL|
|Video Resolution||600 TV Lines|
|Dimensions||D73 x H49 mm|
|Operating Temperature||-10°C to +50°C|
|IR Remote Control||No|
|Power Consumption||12V DC ±10%|
Downloads & Datasheets
- 2.5mm Lens
- 960H Ready
- 600TVL Resolution
- CMOS Sensor
- IP67 Weatherproofing
- Flush Mounted
- Polycarbonate Housing
- 0.003 Lux Sensitivity
