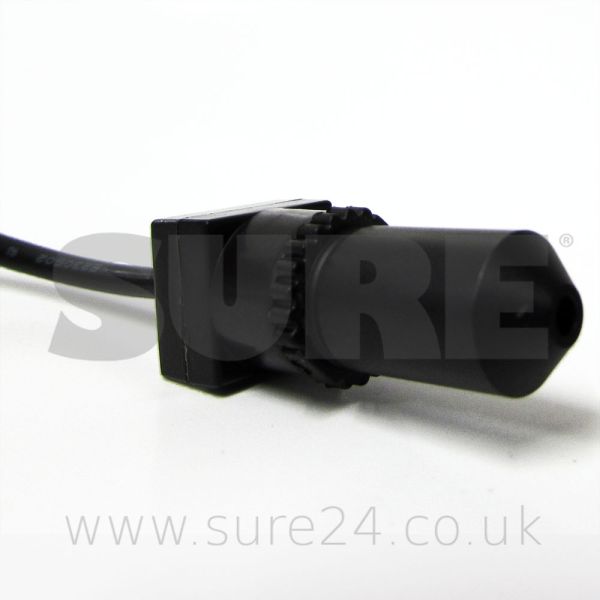

SURE CAM2116CHP4-15 Super Mini Remote Head Sony Effio-E CCD 700tvl - 15mm Pin Hole Lens

Super Mini Remote Head Sony Effio-E CCD 700tvl - 15mm Pin Hole Lens
Excl. VAT: £160.00 Incl. VAT: £192.00



15 x 15mm, 1/3" Sony Effio-E, 15mm HD Pinhole lens

Image Sensor - 1/3 SONY Effio-E Colour CCD

Sensing Area: 4.8mm×3.6mm

Electronic shutter: 1/50(1/60)——1/100,000(s)

Synchronizing System: Interior Synchronization Horizontal

Resolution: 700TVL

White balance: auto

S/N Ratio: - >48db

Gamma Characteristic: 0.45

Minimum illumination: - 0.05Lux, Electronic Shutter, Fixed Lens - f: 15mm PH4-15 HD cone pinhole lens, Power Consumption - 12v+_10%DC,80~100mA

Operating Temperrature: - minus 20-50degreeRH 90% Max, Max, Size - 15×15mm, PAL/NTSC optional Audio, Video Output connector - AV(female) /BNC(male)

Additional Information

SKU CAM2116CHP4-15
Colouration Colour
Infra-Red (IR) No
Lens Type Pinhole
Chip Type CCD (EFFIO)
Audio/Video (AV) Video Only
Environment Internal
Power Consumption 12v+_10%DC,80~100mA
Sense Up / DSS No
Number of effective pixels 975 (H) X582 (V)
Lux 0.05LUX
Dimensions 18(mm)
Weight 80
